Zhengzhou BAIWEI CNC MACHINERY SHARES Co., Ltd., is a high-tech enterprise, which specializes in collection technology research, development, manufacturing medium and small power laser processing equipment, including medium and small power fiber laser cutting machine, YAG medium power laser cutting equipment, co2 power laser cutting machine, CNC turret punch, electro-hydraulic servo bending machine, CNC shearing machine, providing personalized and professional system solutions for customers.
Hydraulic pendulum plate shearing machine adopts integral welded steel plate structure, hydraulic upper transmission and vibration to eliminate stress. This hydraulic swing beam shearing machine or hydraulic swing type plate shear is famous for high strength and good rigidity. The hydraulic pendulum plate shearing machine does shearing movement through the main oil cylinder, which can simplify the hydraulic system and make it run more stable. The top carrier of this hydraulic swing beam shearing machine swings like an arc around a fixed axis in the shearing process. Indicator-based adjustment of gap of blade is convenient and fast. The hydraulic pendulum plate shearing machine is equipped with lighting alignment device, and uses stepless control for the stroke of tool carrier. This hydraulic swing beam shearing machine uses protection fence for safe operation.
Introduction of CNC Hydraulic Swing Beam Guillotine Shear

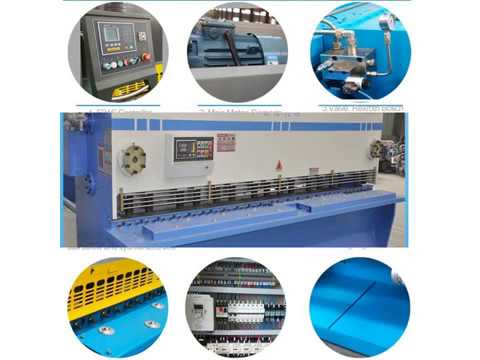

Hydraulic dive and accumulator return, easy operation, reliable performance, beautiful shape of blade gap adjustment have sign indicate instruction, adjust handiness and quickly. It is equipped with lighting device, and can be adjusted on the tool post stoke volume, using the fence type safety protection device, back gauge range size and shearing times has a digital display device.Mechanical Structure Diagram of CNC Hydraulic Swing Beam Guillotine Shear
1. The hydraulic tank integration module2. With high strength steel wire of the module to the line
3. The swing arm
4. The console
5. The main oil cylinder
6. Quick return oil cylinder
7. Safety protection device
8. The motor behind
9. Throat
10. Behind motor driven
